Wavesurfer Pitchmark Plugin
This plugin allows the generation and modification of pitchmark tracks from within Wavesurfer. Pitchmarks are shown in seperate tracks divided into voiced and unvoiced markers and may have a confidence associated with them.
The plugin has to be placed in the system or user Wavesurfer plugin directory, e. g. /usr/lib/wsurf1.8/plugins, ~/.wavesurfer/1.8/plugins or a directory specified in the WSPLUGINDIR environment variable. It can then be accessed from the Create Pane menu item in the context menu.
Simple text based pitchmark files basically consist of one pitchmark per line, given by its position in seconds. Unvoiced pitchmarks are marked with negative positions. An extended variant of this file format can used to store more information in additional columns. The first line contains a comment with the threshold to be applied automatically to the confidence scores in the file. Values other than zero in the second column mark voiced pitchmarks, otherwise they are regarded as unvoiced. The third column holds the confidence score, with zero for disabled and -1 for unconditionally enabled pitchmarks. If the confidence value has been changed manually, the forth column contains the original value before the modifcation.
This table shows a comparison of the two formats:
|Multicolumn pitchmark file||Simple pitchmark file|
# 0.3 79.00 0 113.00 0 228.48 1 0.121 361.64 1 0.767 488.40 1 -1.000 0.212 615.68 1 0.754
-79.00 -113.00 361.64 488.40 615.68

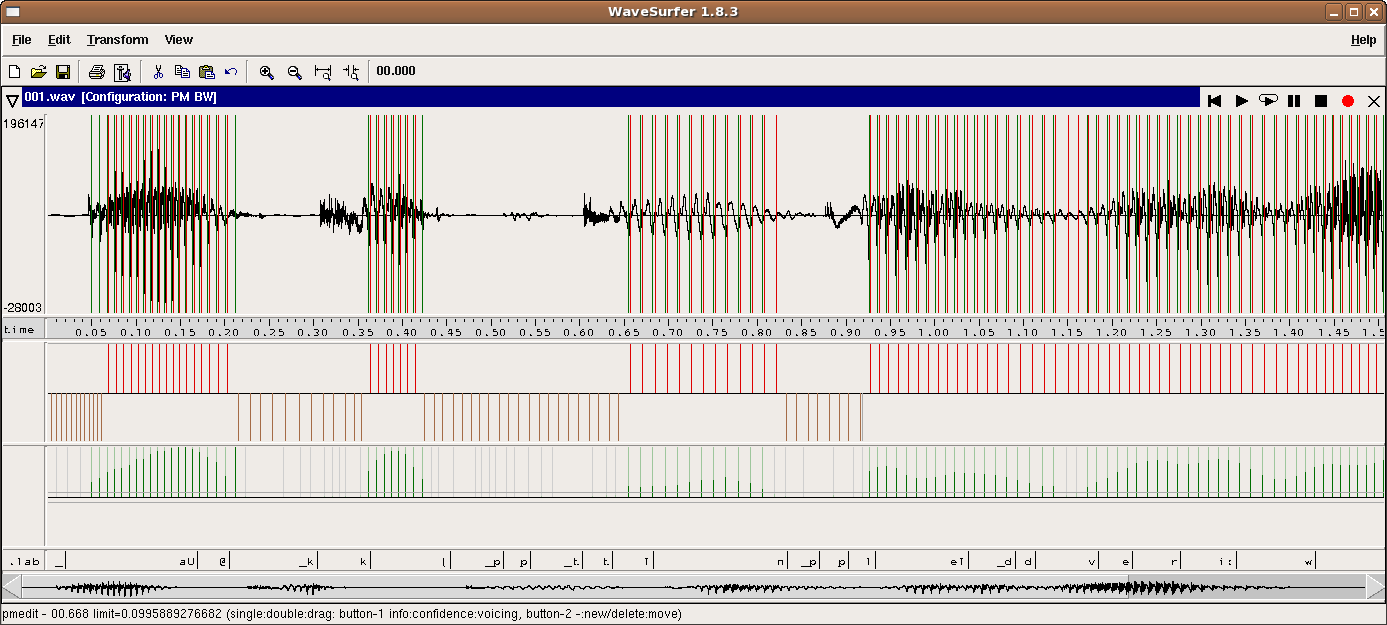

The pane is vertically divided into voiced and unvoiced pitchmarks. Automatically extracted pitchmarks can include a confidence score in the range of 0 to 1 that is shown as a split bar. A threshold can be used to select only pitchmarks with a higher confidence score. The status line shows the current position, the selected threshold value and a short description of the available mouse actions.
Pitchmarks can be inserted, deleted and modified. Most actions are accessible from the context menu as well as with the mouse:
- Pitchmarks can be inserted by selecting Insert Pitchmark from the context menu or by double-clicking with the middle mouse button on an empty position of the pane.
- To delete pitchmarks, use Delete Pitchmark from the context menu or double-click with the middle mouse button on a specific pitchmark.
- Pitchmarks can be moved by dragging them with the middle mouse button.
- Selection of a pitchmark with the left mouse button shows information about the pitchmark position, voicing and the confidence score as long as the button is pressed.
- Drag a pitchmark between the upper and lower parts with the left mouse button or select Change Voicing from the context menu to switch between voiced and unvoiced.
- Double click with the left mouse button on a pitchmark to change its confidence value. A pitchmark can be disabled (confidence=0) or unconditionally enabled (confidence=-1). In addition to these options, the context menu provides the possibility to restore the confidence back to its original value.
- Use the scroll wheel on the mouse to switch between two customizable zoom levels.
The plugin can load and save simple and multi-column pitchmark files. All stored files will include the selected threshold as a comment in the first line and use the shortest format available for the following pitchmark entries. To export only pitchmarks that have a confidence value larger than the selected threshold in the simple pitchmark format, use the Export Effective Pitchmarks entry in the context menu.

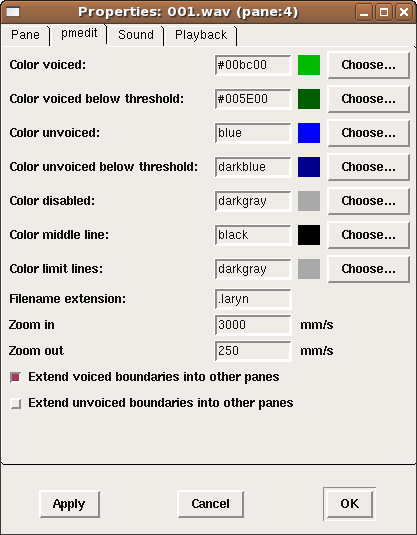

The property page of the plugin allows to modify some of its settings. The upper entries on the page can be used to adjust the appearance of the display elements such as the pitchmark bars for voiced, unvoiced and disabled pitchmarks. The filename extension is used to load a pitchmark file with this extensions if it is available in the same directory. A change to this setting causes the reload of the pitchmark file. The zoom level entries adjust the magnification levels for the scroll wheel actions and the bottom checkboxes allow the voiced and unvoiced bars to extend into waveform and frequency domain panes.
pmedit.plug. This script was tested on an Ubuntu breezy system with Wavesurfer 1.8.3. It is released under GNU GPL.
pmview Plugin for Wavesurfer.
